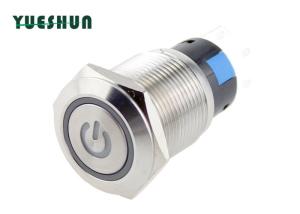

19mm Blue RED Illuminated Push Button Switch Round Head Angle Eyes Symbol 5 Pin Terminal

Name: 19mm Blue RED Illuminated Push Button Switch Round Head Angle Eyes Symbol 5 Pin Terminal
Brand: YUESHUN
Price: 1 USD

Brand Name : YUESHUN

Model Number : LA19F-11EY/S

Certification : CE RoHS

Place of Origin : Wenzhou, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T to our company account or by paypal

Supply Ability : 5000Pcs/Day

Delivery Time : 3-7 work days

Packaging Details : The product is packed in foam box to prevent damage during transportation.

Led Type : Power Ring Symbol

LED life : More than 40,000 hours

Max. Current : 5A

Max. Voltage : 250V AC

Weigh : 30g

Terminal type : 5 Pin Termlmal

Contact Now

19mm Blue RED Illuminated Anti Vandal Push Button SwitchRound head Angle eyes Symbol 5pin Terminal

Product Description

- Push button switch are simple device. There are two key parts for the psuh button, the actuator and the contacts. The head actuator will go all the way through the switch. Inside is a movable silve plated contact and spring. When the actuator is activited, it touches with the stationary contacts, causing the action to take place.
- Illuminated push button switches are made of 304 Stainless Steel, 316 Stainless Steel, Black Aluminum, Nickel Plated Brass. Gold plated brass - Latching switch, push it down, it stays down and latched in the closed position, press the button again and it releases and unlatched；

- Momentary switches are switches which only remain in their on state as long as they’re being actuated (pressed, held, etc.).

Product Specification

Model Number	LA19F-11EY/S
Mounting Hole	19mm
Max.Switch Rating	Ith : 5A Ui : 250V AC
Material	Body Material : Stainless Steel
	Button Material :Stainless Steel
	Contact Material : Silver Alloy
	Base Material : PBT
The Front Shape	Flat Round Head
Terminal Type	Pin Terminal( 2.8 * 0.5 MM )
Switch Operation	Momentary or Latching are available
Contact Configuration	1NO + 1NC or 2NO + 2NC
Mounting panel thickness	1-10 mm
Operation Distance	About 3.1 mm
LED Parameters	Led Type : Power ring Symbol
	LED Color : Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing all Can be customized.
	Led Voltage: 3V 6V 12V 24V 36V 110V 220V 360V for choose.
	LED Life : More than 40,000 hours
Protection Level	IP67
Operating Temp	-20℃～+55℃
